SOLAR POWER
MADE EASY

WHAT WOULD YOU LIKE QUOTES FOR?

SOLAR ONLY

BATTERY

BOTH

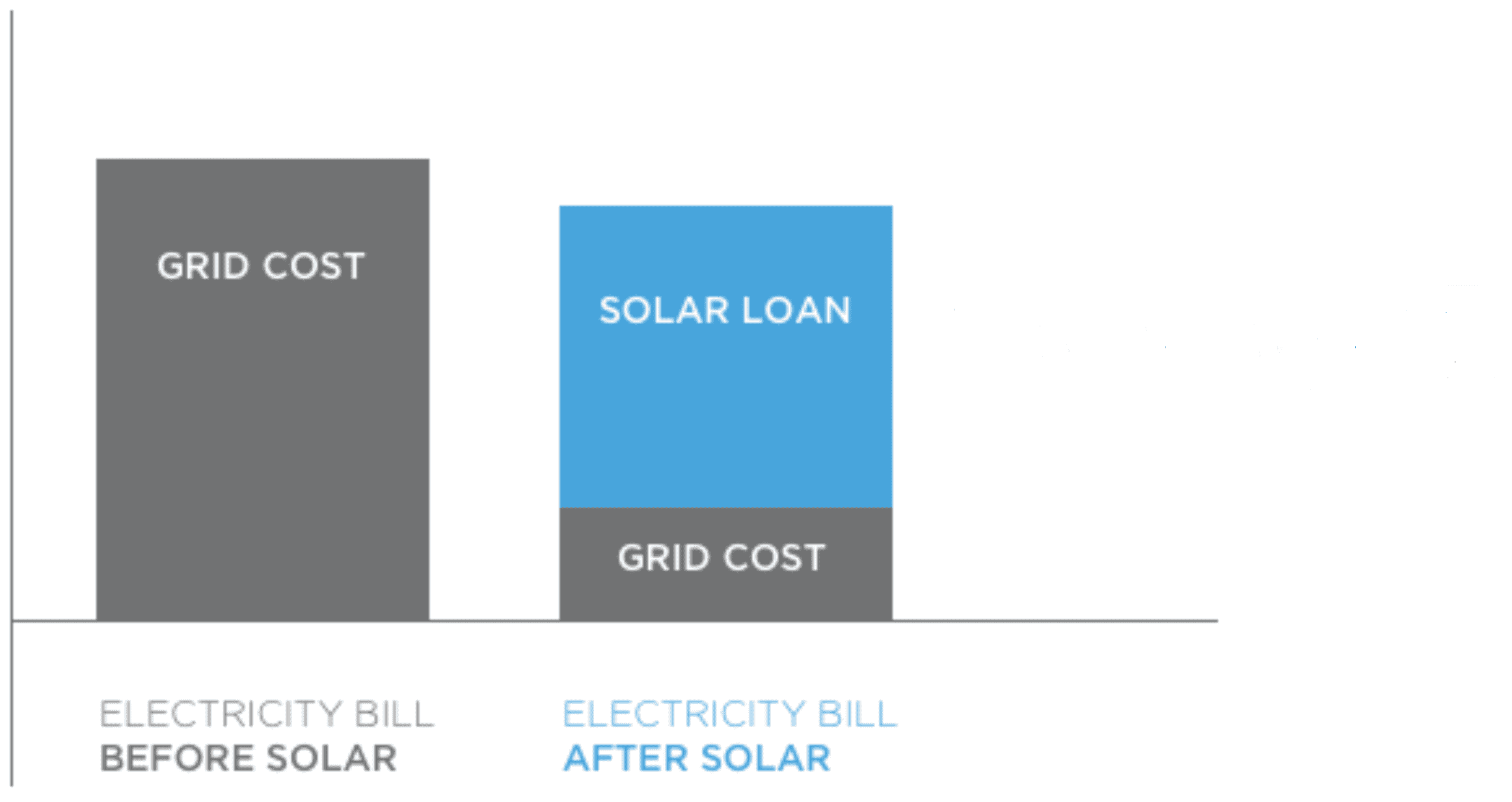

SOLAR LOAN PROGRAM

Install solar for little to no upfront cost and pay by the month like your electricity bill only lower. Why rent power when you can own it for less !

Solar System GUIDE

The information below outlines guide based off a standard solar installation and system yield comparison with a conventional DC inverter rating. Actual performance may vary depending on location, angle and orientation and is to be used as a guide only.

5kW SYSTEM
MEDIUM HOME

7kW SYSTEM
LARGE HOME

10kW SYSTEM
LARGE HOME

15kW SYSTEM
3 PHASE LARGE

COMPARE SOLAR SYSTEMS

COMPETITOR

VS

SINGLE POINT OF FAILURE

PERFORMANCE

INDEPENDENT PERFORMANCE

HIGH VOLTAGE DC NO CIRCUIT PROTECTION

SAFETY

AC WIRING COMPLETE CIRCUIT PROTECTION

OVERALL SYSTEM MONITORING ONLY

RELIABILITY

24/7 PANEL LEVEL MONITORING TRACKING

The Type X module combines high-efficiency N-Type cells with 0BB (zero busbar) and back-contact cell technology. With all electrical contacts moved to the rear of the cell, more of the panel surface is exposed to sunlight, and the front of the panel has a clean, uniform look.

Our current solar panel: REA Type X AC Module

Model	REA-HD108R (475–500)
Power output	475–500Wp
Efficiency	up to 24.5%
Dimensions	1800 × 1134 × 30 mm
Weight	23.5 kg
Temperature coefficient	-0.26%/°C
Load rating	5400 Pa (front) / 2400 Pa (rear)
Micro inverter	Enphase IQ8HC built in
Warranty	25-year product / 30-year performance

See full specifications on our Solar Panels page

PANEL LEVEL AC SOLAR CONVERSION

- Each panel is connected in parallel using an Enphase Engage AC trunk cable
- Each panel operates independently with an MPPT (Maximum Power Point Tracker) on each panel
- Panel level performance monitoring and temperature monitoring to maximise performance
- Cable running from the solar panels through the home is the same that powers your appliances
- System is completely circuit protected using mains circuit breaker in switchboard
- 12V system startup for longer operating window
- No risk of DC and faults that cause solar fires
- Lower cost per kWh (actual generated energy)
- Fewer panels required to produce required energy
- Double rated operating life and warranty

CONVENTIONAL DC INVERTER SYSTEM

- Each panel is connected together in series so if one panel is disconnected the entire string is down
- System connected to central inverter with one (Maximum Power Point Tracker)
- System operates at the Lowest performing panel and no panel level monitoring is available
- Cable running from the solar panels through the home is up to 600V Direct Current
- System cannot be circuit protected so rooftop isolators must be fitted by law for manual shutdown
- High risk of DC arc faults and system fire due to high DC voltage and single point of failure
- Lower cost per kW and higher cost per kWh (actual generated energy)
- More panels required to produce required energy
- Reliability and warranty is typically half

SOLAR POWER COMPONENTS

SOLAR PANELS

MICRO INVERTERS

MONITORING SYSTEM

INDUSTRY LEADING QUALIFICATIONS

12488

GLOBAL

INSTALLS

38 IN-HOUSE

INSTALLERS

34 YEARS

EXPERIENCE

25 YEAR

WARRANTY

GETTING STARTED

Going solar has never been easier with our expert team of in house Energy Advisors. We design a bespoke solution that best matches your energy needs and provides the lowest cost and fastest return on investment using the world's most advanced solar technology.

SOLAR POWER
ASSESSMENT
PROCESS

1. CONTACT

Contact us via our website or call us direct and our friendly staff will collect your information and requirements then allocate you a personal REA Energy Advisor.

2. MEETING

Your Energy Advisor will make contact to answer any initial questions you may have and schedule a time that suits to inspect your property and present the solar technology.

3. DESIGN

During your solar technology presentation your Energy Advisor will design your solar system and provide all technical information system cost and savings calculations.

4. BOOKING

Once your solar system is designed and you are happy with the solution you will be provided a comprehensive proposal to agree and sign then your installation is scheduled.

WHAT MAKES REA SOLAR SYSTEMS UNIQUE

MORE POWER
WITH LESS
PANELS

WORLDS
SAFEST SOLAR
SYSTEM

25 YEAR
INDUSTRY LEADING
WARRANTY

24/7 MONITORING
EVERY SINGLE
SOLAR PANEL

Choosing the right solar power system for your home is an important decision as its investment in lower cost clean energy for you and your family for the next 25 years.

There is a big difference between a cheap solar system that costs less up front and delivers less energy and a value for money system that produces more power and more energy savings.

Our mission is to create the most value for money solar power investment in the UK by providing a higher performing solar system that requires no ongoing costs to maintain and delivers guaranteed performance reliably for over 25 years.
